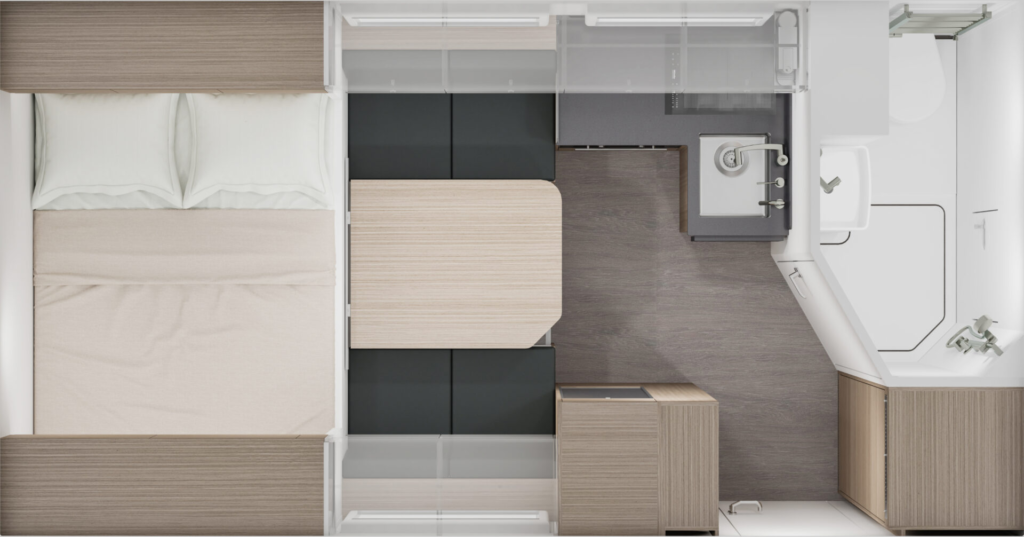

180” Length -
TYPE A
CREW
2
fresh water tank volume
82 gal
additional fresh water
49 gal
OPTIONAL
Grey water
66 gal
( LAYOUT FEATURES )
OPTIONAL
a fold-out worktop extension
( take a 3d tour )
EQUIPMENT
AND - OPTIONS
At KRUG EXPEDITION, every detail is built for performance, comfort, and durability—from reinforced modules to smart interiors and advanced materials. }
( MODULE BODY FEATURES )
OPTIONAL
OPTIONAL
( MODULE INTERIOR )
Modern aesthetic
living - interior
The design emphasizes function and is tailored to long-distance travelers, with a wide range of materials to customisze your module to your taste.
wood panels
and drawers
decorative HPL
OPTIONAL
OPTIONAL
( Gallery )
( LIVING MODULE )
DINING AREA
The size of the dining area seating benches and table is determined by the living module layout.
The tabletop surface is finished to match the other furniture. The seating bench comes with fabric upholstery as standard, with an option to upgrade to leather, both options available in any color of your choice.
Beneath the seats are the water tanks and the modular Powerbox, which supplies energy to the module. The platform beneath the table houses the heating system and hot water boiler. In line with our philosophy of maximum reliability at the lowest possible price, these components are fully standardized.
The table in the dining area can easily be converted into an additional bed.
OPTIONAL
Innovative, self-supporting, sliding table system
Our innovative sliding dining table system can be completely retracted under the double bed, ensuring optimal space and convenience.
- Single-handed operation
- Multiple positions possible
- Stable, heavy-duty guide rails
- Four folding flaps that serve as a footrest or can be expanded into a double bed
KITCHEN
- HPL Worktop
- Induction hob by Miele with two cooking zones (flush-mounted)
- Miele oven with microwave
- Stainless steel sink by Blanco
- Miele KF 7731 D fridge-freezer combination with total 60 gal capacity.
OPTIONAL
- Complete set of cutlery, tableware and cookware for 6 people
- MIELE steam oven
BATHROOM
- Waterless Separett Tiny dry separation toilet with 7.5 liter urine tank
- Robust HPL flooring
- Towel dryer
- Built-in GRP sink with single-handle faucet
- Soap dispenser
- Shower with concealed underfloor tray and complete shower set
- Exhaust fan
- Cabinet for bathroom accessories
- Mirror
OPTIONAL
Macerating toilet
and 49 gal black water tank
Yacht-quality macerating toilet. Black water tank with external ventilation via an activated carbon filter and an irrigation pump that transfers the water from the grey water tank into the black water tank for flushing purposes.
( EQUIPMENT )
VENTILATION & AIR CONDITIONING
Powerful Maxxair roof ventilator in the living area
• Air inlet and outlet modes
• Remote-controlled
• Air-conditioning features
• Rain sensor that closes the hood automatically upon detection of rain
• Additional proprietary insulating hood on the roof of the module that prevents condensation in low outside temperatures
Powerful Maxxair roof ventilator in the bathroom
• Air outlet mode
• Water-resistant design
Bayernluft System
A Bayernluft Comfort ventilation unit with heat recovery and humidity control is installed in the module. This system maintains the ideal humidity level, eliminating the risk of condensation or mold.
Dometic RTX2000 Rooftop AC
This exceptionally compact, roof-mounted air conditioner is designed for maximum efficiency and minimal energy consumption. It is easy to operate and provides flexible airflow through independently adjustable diffusers.
-
High cooling capacity: 2000 W
-
Low-profile external unit
-
Very quiet operation
-
Highly efficient: only 9.5 A power consumption in Eco mode
OPTIONAL
HEATING
Our efficient coolant-based hydronic heating system combines underfloor heating, radiators, and a towel radiator with hot water supply. Built with high-quality vibration-resistant piping, it ensures long-lasting performance.
The hydronic system distributes heat evenly, keeping the module warm for extended periods through heated pipes, radiators, and thermally charged flooring. Its primary heat source is a 7 kW Scheer-Nano diesel-powered heater.
Automatic altitude control maintains consistent combustion and efficiency, whether at sea level or high in the mountains, by adjusting to changing oxygen levels.
Additional Air Heating
An auxiliary air heating system is installed to ensure the module stays warm at all times. It can heat the living room and bathroom if the main heater fails, and it also allows for a rapid warm-up of the module.
Water Supply and Filtration System
The fresh water tank can be filled via the side-wall filler neck, allowing use even with low water pressure or from a canister. Pressurized filling includes three-stage pre-filtration with activated carbon and a PURION 1000 UV lamp (254 nm) that eliminates germs, bacteria, viruses, and spores at up to 1,000 l/h (265 gal/h).
Water is delivered by two independently switchable pressure pumps, ensuring a fail-safe, redundant system. Drinking water is further purified with a General Ecology Seagull IV-X2 carbon filter (removing chemicals, chlorine, and particles ≥0.4 µm) and a UV LED unit for instant, automatic disinfection.
An external shower outlet is located in the garage compartment, and both hot and cold water circuits include compressed air inlets for draining residual water during winter storage.
Fresh and Waste Water Tanks
-
Fresh water tank: 180 gal (49 gal additional tank if there is no Macerator toilet option)
-
Grey water tank: 66 gal
-
Black water tank: 42 gal (only with Macerator toilet option)
All tanks are located inside the module and feature an automatic frost protection system. Tank levels are monitored by sensors and displayed on the central control panel inside the living area. Grey and black water tanks can be emptied via an electric switch in the garage compartment or manually in case of an emergency.
Washing Machine with Dryer
Designed to resist vibrations, the washing machine is mounted inside the module and connected to the power and water supply systems, as well as the grey water tank.
OPTIONAL
POWER SUPPLY
Standardised Energy Supply – Powerbox
• High-energy lithium-ion battery bank
• Very high energy density (low weight, high capacity)
• Integrated battery management system
• High safety standard
• 24 V, 1080 Ah total capacity (25 kW / hours)
Battery management controller
Protects the connected battery modules against overcharging, deep discharging, as well as over-temperature and under-temperature, and controls the balancing of the battery cells.
Victron Quattro 5000 120V Inverter and charger
• Inverter power: 5000 VA (4000 W cont. output, 10000 W peak power)
• Charging capacity: 120 A
Victron Quattro 8000 230V Inverter and charger
• Inverter power: 8000 VA (6400 W cont. output, 16000 W peak power)
• Charging capacity: 200 A
Solar Power
• 1600 Wp solar panels (depends on module type and roof space)
• 24 V / 50 A DC-DC charge controller (charges batteries from vehicle alternator)
Control Components
• Victron color control monitor
• Wireless remote system monitoring
• Fuse panel with automatic and residual current circuit breakers
• Emergency engine start via module batteries
• Global monitoring via VictronConnect app
Outdoor Lighting and Sockets
• 120 V power socket on right side of the garage compartment
• 120 V / 230 V shoreline power connection, 32 A, high quality charging cable
• Exterior LED lights on all 3 sides of the living module (left, right and rear)
• Marker lights
Interior Lighting and Sockets
• Dimmable, recessed ceiling-mounted LED luminaires
• Dimmable, separately adjustable LED light strips underneath the wall units
• Dimmable reading lights in the bedroom and dining area
• Multiple 120 V power sockets
• Multiple USB-C charging ports
• 1 x 12 V power socket
Additionally included
• Preparation for Starlink installation
• 32″ Smart TV in the dinette area
Starlink installation
• Installation of a Starlink system provided by the customer
Camos rear view camera
• 7-inch display in the driver cab, switches on automatically when the vehicle is put into reverse
Camos 360° Camera System
• Includes four ultra-wide-angle HD cameras and a control unit and a 7-inch display in the cab
• Switches on automatically when the vehicle is put into reverse
• Prevents blind spots, improves safety
• Additional second screen for the Camos 360° camera system (in the living area)
Waste water drainage camera
Camera mounted under the module makes it possible to precisely maneuver over the drainage point when emptying the waste water tanks.
• Connection to existing vehicle display in the driver’s cab
• Includes control switches for operating the drain openings of the waste water tanks in the driver’s cab
OPTIONAL
( ACCESSORIES )
ENTRANCE STAIRS
ENTRANCE STAIRS
From folding ladders to motorized retractable steps, our stairs are compact, stable, and ground-free. Engineered for safe and easy access in any terrain.
ROOF RACK
ROOF RACK
Durable roof racks for MAN and Mercedes cabs with foldable, lockable ladders and customizable lighting. Optional cargo box sets expand functionality. All systems are fixed to subframe-mounted plates, keeping stress off the cabin.
OUTDOOR KITCHEN
OUTDOOR KITCHEN
A fully equipped, quick-deploy kitchen built into an exterior cargo box. Includes electric grill, induction or contact cooker, and a sink with ready-to-use water connections.
RACKS
RACKS
Secure external mounts for spare tires, e-bikes, and motorbikes — from modular racks to hydraulic lifts. All systems are fixed to subframe-mounted plates, keeping stress off the cabin.
