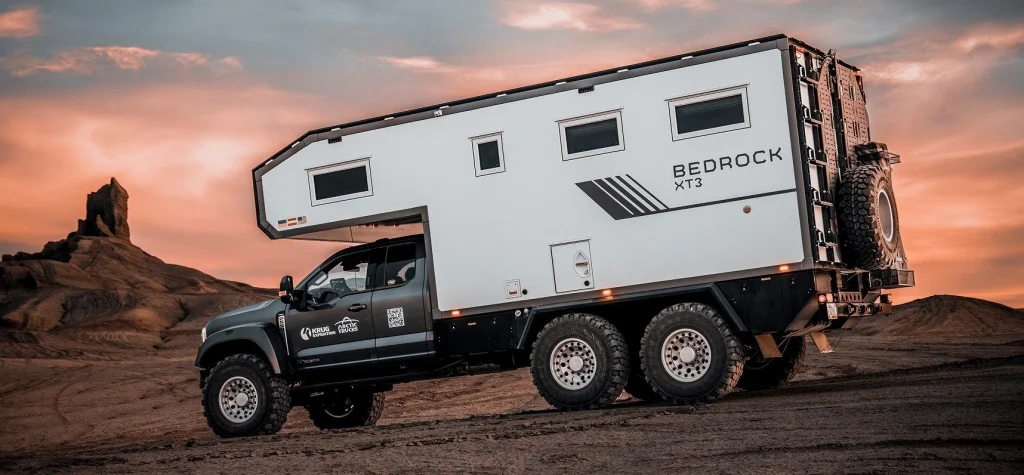

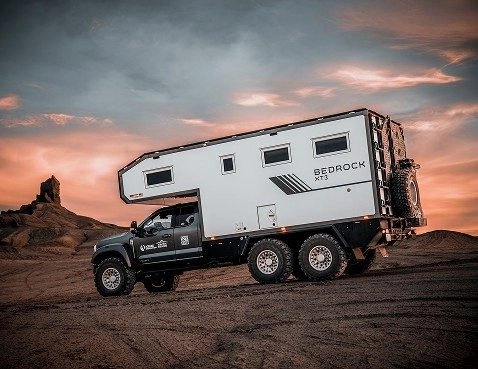

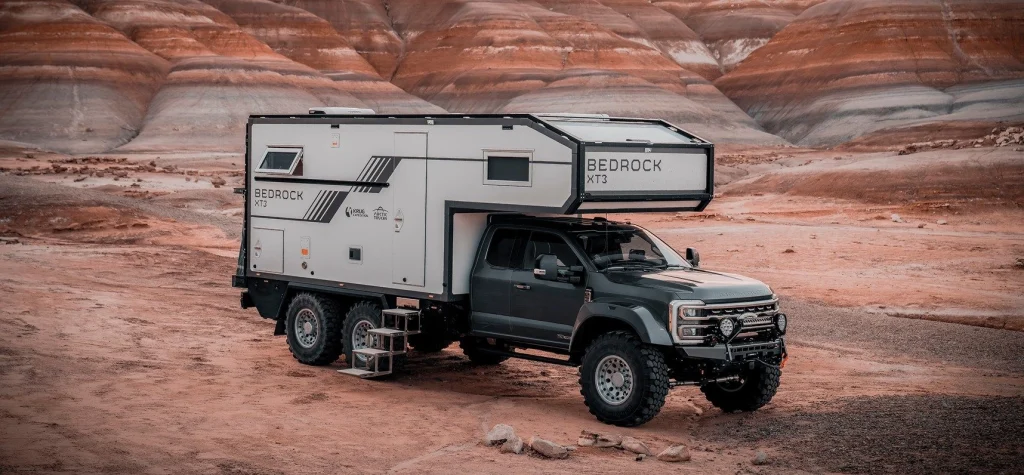

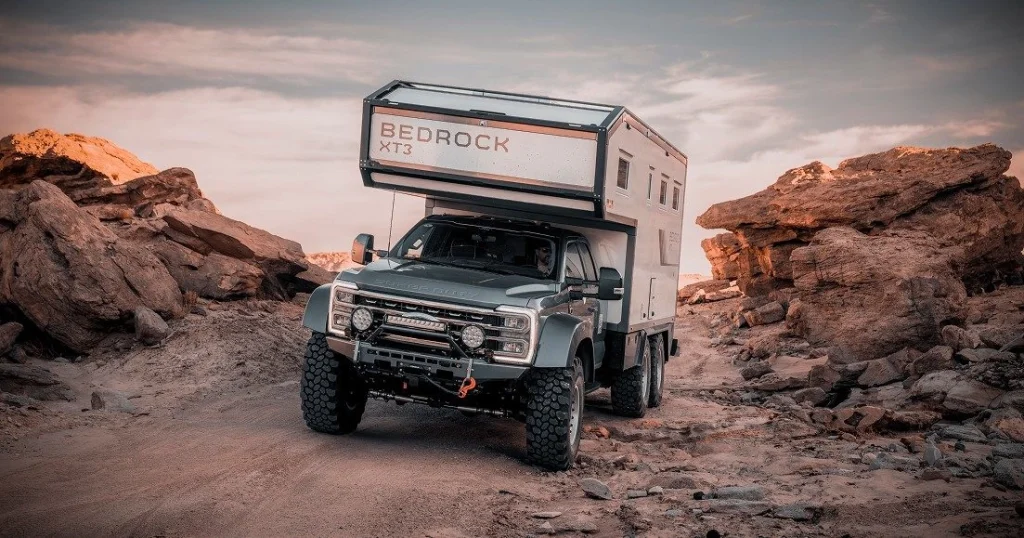

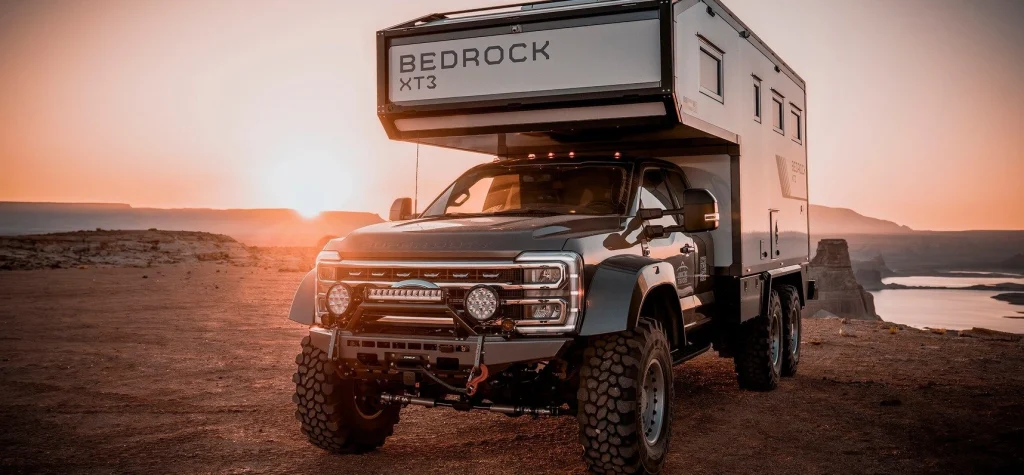

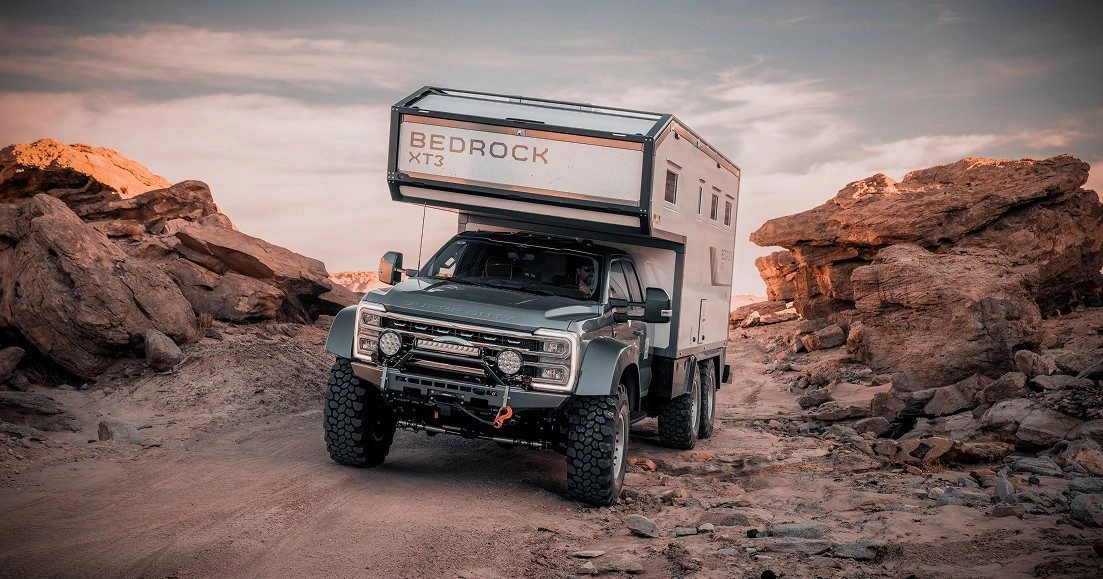

Bedrock XT3 .
the foundation
of
your adventures

Our efficient coolant-based hydronic heating system combines underfloor heating, radiators, and a towel radiator with hot water supply. Built with high-quality vibration-resistant piping, it ensures long-lasting performance.

The hydronic system distributes heat evenly, keeping the module warm for extended periods through heated pipes, radiators, and thermally charged flooring. Its primary heat source is a 7 kW Scheer-Nano diesel-powered heater.

Automatic altitude control maintains consistent combustion and efficiency, whether at sea level or high in the mountains, by adjusting to changing oxygen levels.

Additional Air Heating
An auxiliary air heating system is installed to ensure the module stays warm at all times. It can heat the living room and bathroom if the main heater fails, and it also allows for a rapid warm-up of the module.

Powerful Maxxair Roof Ventilator – Living Area

• Air inlet and outlet modes

• Remote-controlled

• Air-conditioning features

• Rain sensor that automatically closes the hood when rain is detected

• Additional proprietary insulating hood on the roof to prevent condensation in low temperatures

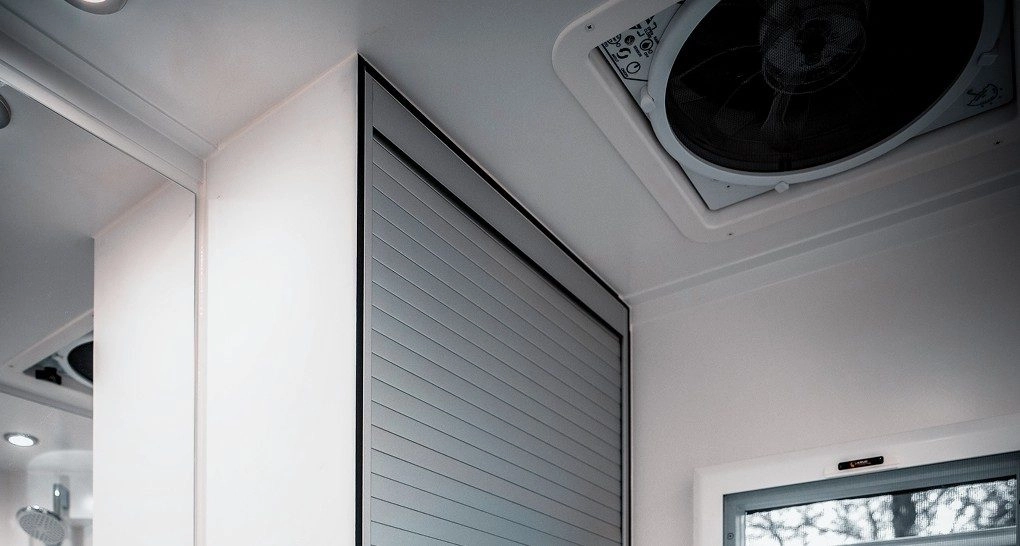

Powerful Maxxair Roof Ventilator – Bathroom

• Air outlet mode

• Water-resistant design

Bayernluft System
The module is equipped with a Bayernluft Comfort ventilation unit featuring heat recovery and humidity control. This system maintains the ideal humidity level inside the module, reducing the risk of condensation or mold.

Water Supply and Filtration System
The fresh water tank can be filled via the side-wall filler neck, allowing use even with low water pressure or from a canister. Pressurized filling includes three-stage pre-filtration with activated carbon and a PURION 1000 UV lamp (254 nm) that eliminates germs, bacteria, viruses, and spores at up to 1,000 l/h (265 gal/h).

Water is delivered by two independently switchable pressure pumps, ensuring a fail-safe, redundant system. Drinking water is further purified with a General Ecology Seagull IV-X2 carbon filter (removing chemicals, chlorine, and particles ≥0.4 µm) and a UV LED unit for instant, automatic disinfection.

An external shower outlet is located in the garage compartment, and both hot and cold water circuits include compressed air inlets for draining residual water during winter storage.

Fresh and Waste Water Tanks

• Fresh water tank: 450 L (118 gal)

• Grey water tank: 160 L (42 gal)

• Black water tank: 160 L (42 gal)

All tanks are located inside the module and feature an automatic frost protection system. Tank levels are monitored by sensors and displayed on the central control panel inside the living area. Grey and black water tanks can be emptied via an electric switch in the garage compartment or manually in case of an emergency.

Our modules and their equipment are designed to provide a fully all-electric experience. Powerful solar panels, a large lithium-ion battery bank, and high-quality components from Victron—an established manufacturer of energy systems for marine and off-grid applications—ensure a reliable energy supply wherever you are, eliminating the need for gas bottles or adapters. The system supports both 120 V and 230 V charging, allowing you to charge anywhere in the world.

Standardized Energy Supply Powerbox

High-Energy Lithium-Ion Battery Bank

• Very high energy density (high capacity with low weight)

• Integrated battery management system

• Highest safety standards

• 12 V, 2160 Ah total capacity (25 kWh)

Victron Quattro 5000 230 V Inverter and Charger

• Powers kitchen appliances and charges batteries outside North America

• Inverter power: 5000 VA (4000 W continuous output, 10,000 W peak)

• Charging capacity: 120 A

Victron Quattro 5000 120 V Inverter and Charger

• Powers household outlets and charges batteries in North America

• Inverter power: 5000 VA (4000 W continuous output, 10,000 W peak)

• Charging capacity: 120 A

Additional Components

• 1450 Wp of solar panels

• DC/DC charge controller (12 V / 100 A) for charging from the vehicle’s alternator

• Emergency start feature for starting the vehicle using module batteries

• Fuse panel with automatic circuit breakers and residual current protection

• Victron color control monitor with wireless remote system monitoring

• Worldwide system monitoring via the VictronConnect app

Additionally Included

• Preparation for Starlink installation

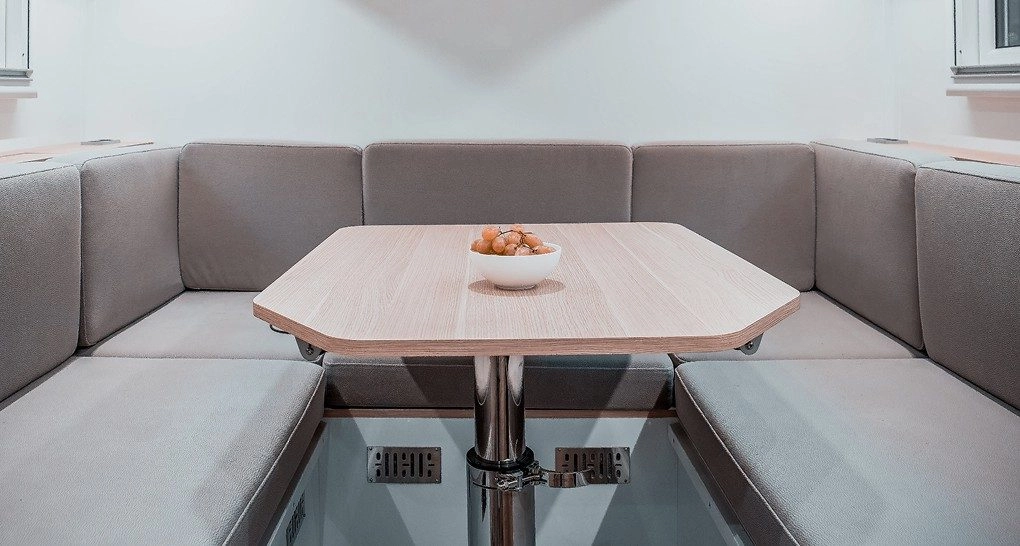

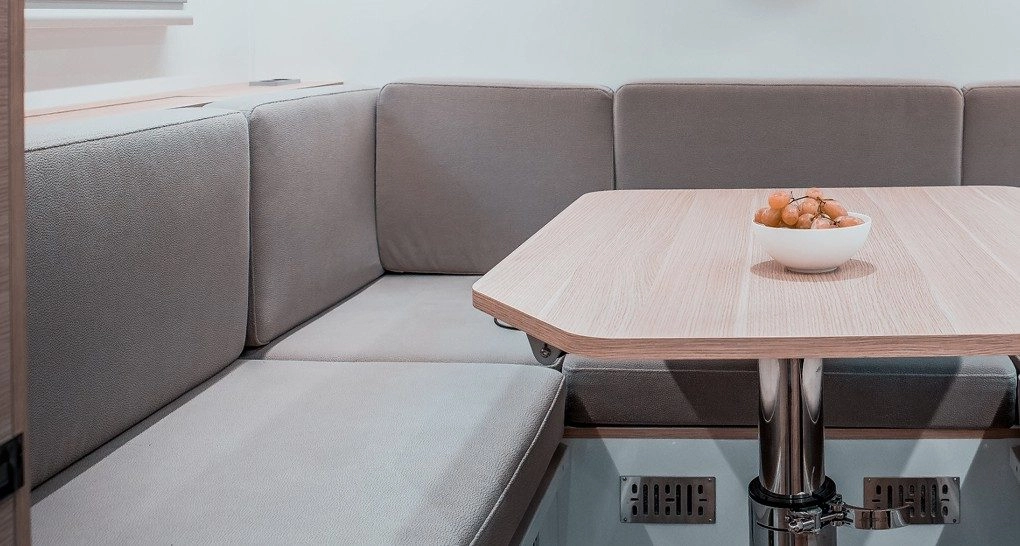

• 32″ Smart TV in the dinette area

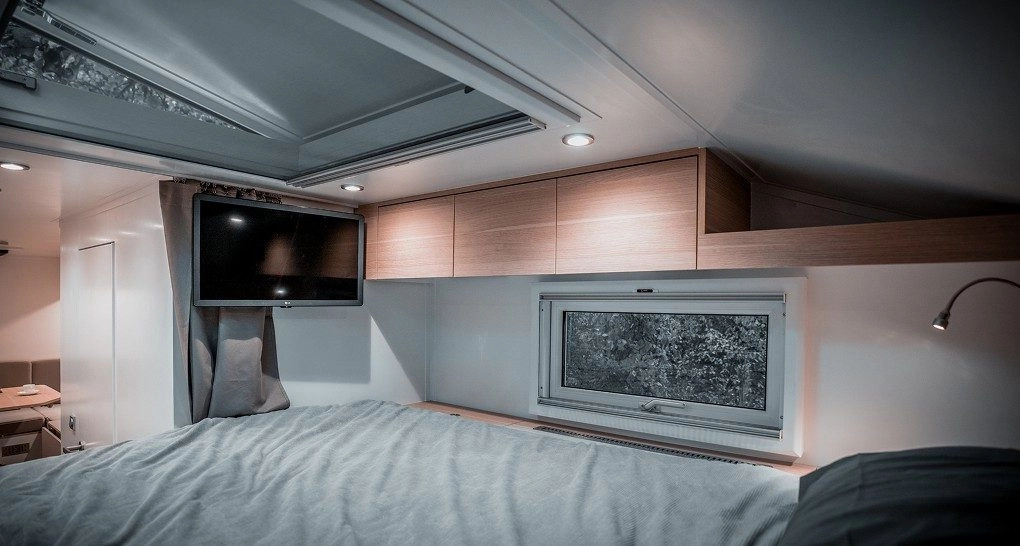

• 24″ Smart TV in the cabover section

Interior Lighting and Sockets

• Dimmable, recessed ceiling-mounted LED luminaires

• Dimmable, individually adjustable LED light strips under the wall units

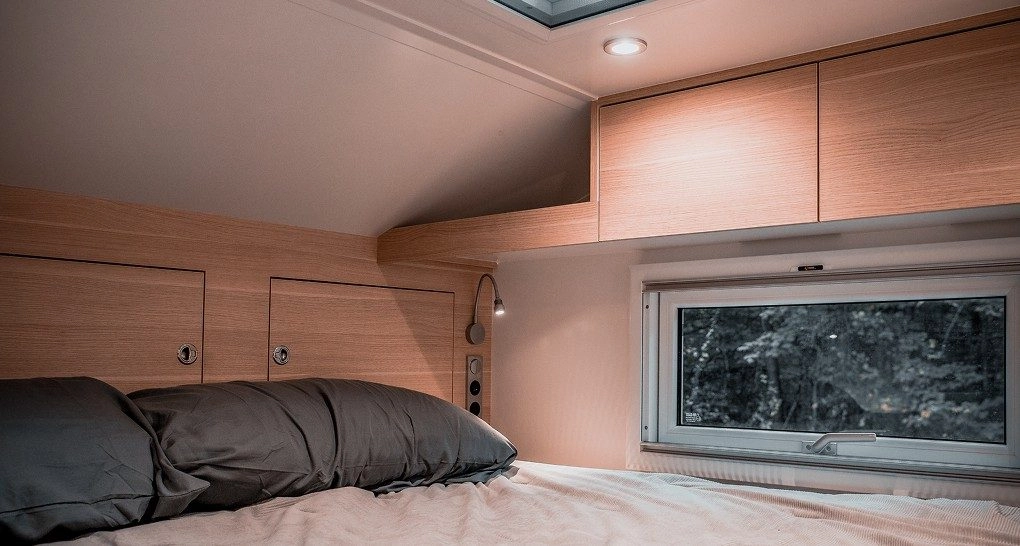

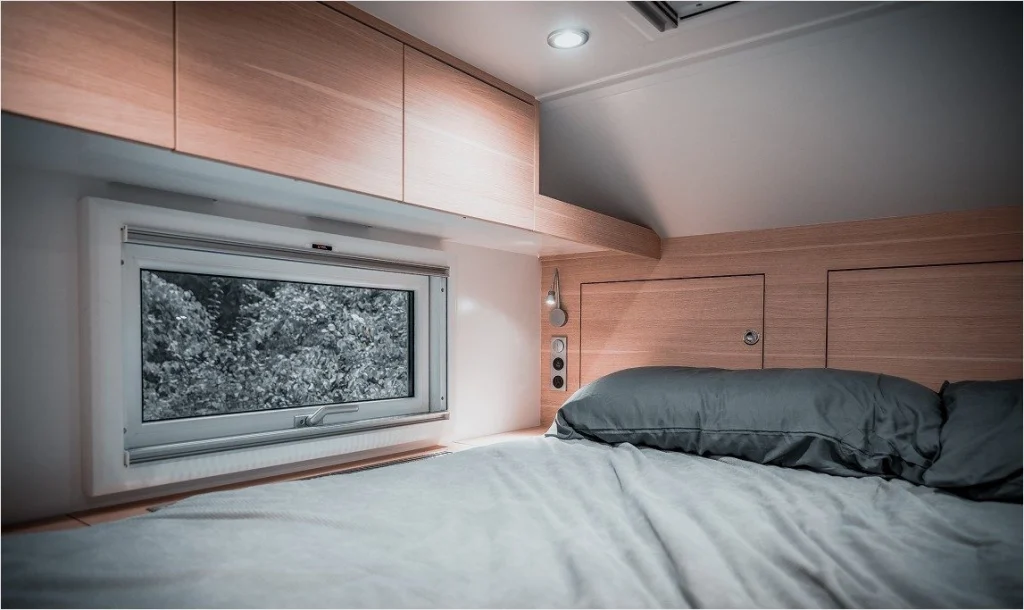

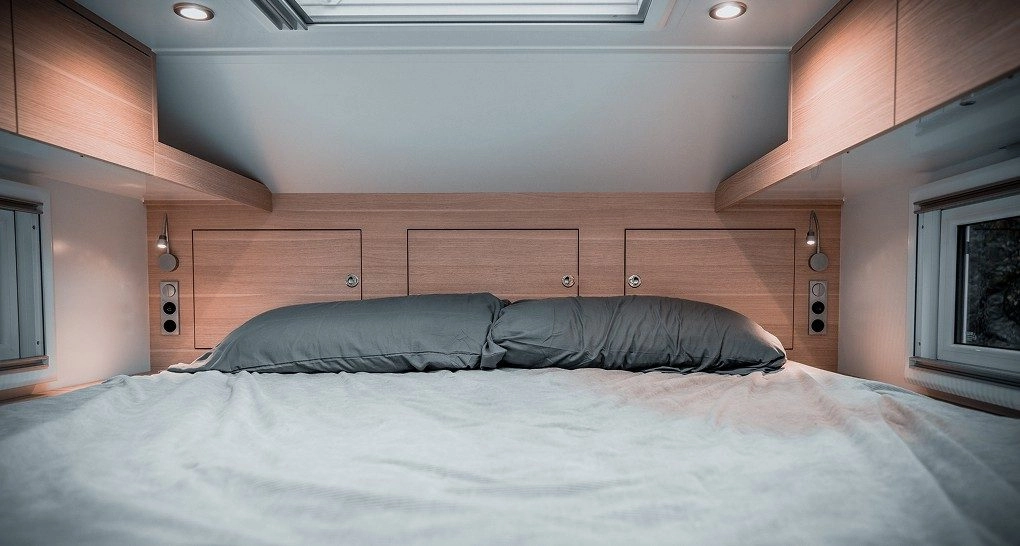

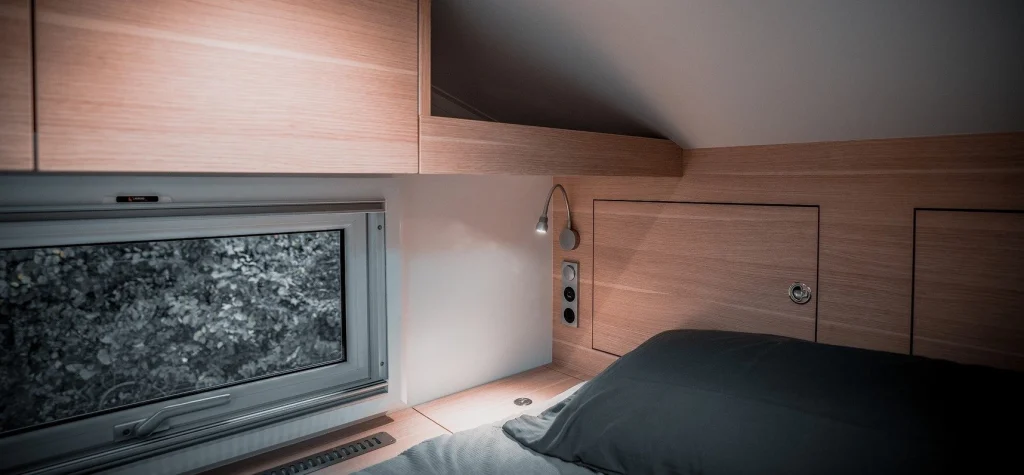

• Dimmable reading lights in the bedroom and dining area

• 11 × 120 V power sockets

• 5 × USB-C charging ports

• 3 × 12 V sockets

Outdoor Lighting and Sockets

• 120 V power socket on the right side of the garage compartment

• 120 V / 230 V shoreline power connection, 32 A, with high-quality charging cable

• Exterior LED lights on all three sides of the living module (left, right, and rear)

• Marker lights

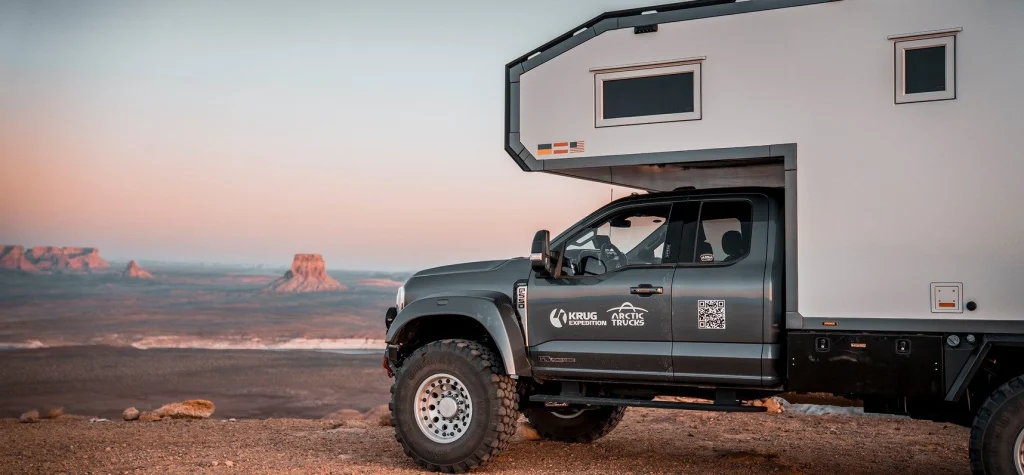

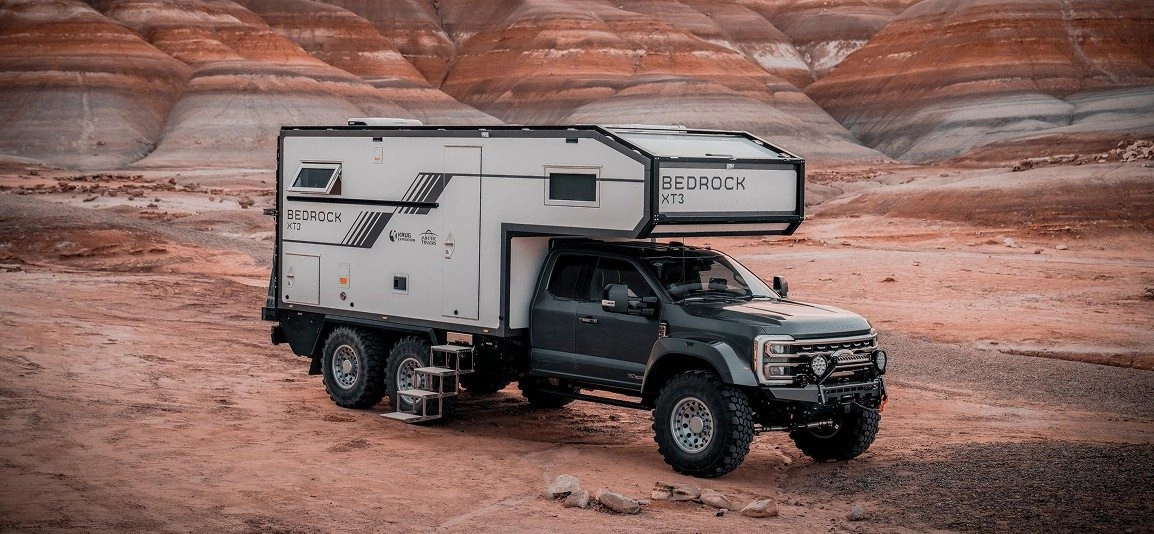

Base Vehicle

• Pass-Through to Living Module
  Secure access door with three-point locking, flexible bellow, stabilizing frame, and full integration with the driver’s cab, including interior trim and seat modifications.
• Central Tire Inflation System
  On-the-fly tire pressure control for optimal performance on any terrain, ensuring quick adaptation to surface, load, and conditions.

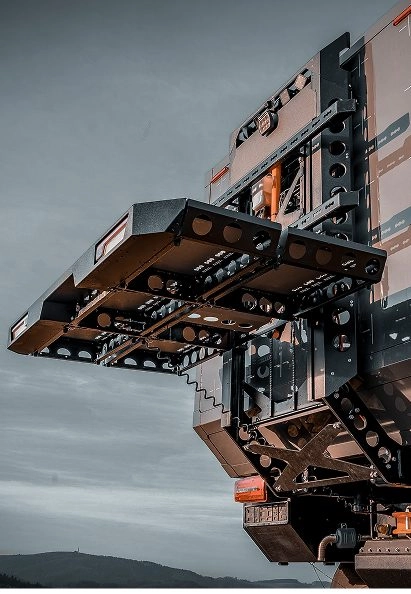

• Lightweight Hydraulic Bike Lift (Late release)
  Carrier for e.g. 1 motorcycle and 1 complete spare wheel OR for 2 complete spare wheels. Max. payload 500 kg. Mounted on the subframe, galvanized and powder-coated.
• Outdoor Kitchen
  Stainless steel pull-out kitchen with two fold-outs, featuring a Kenyon electric grill, sink, and power connection. Water is supplied via the rear garage’s external shower to prevent frost damage, with drainage through a long hose to the outside.

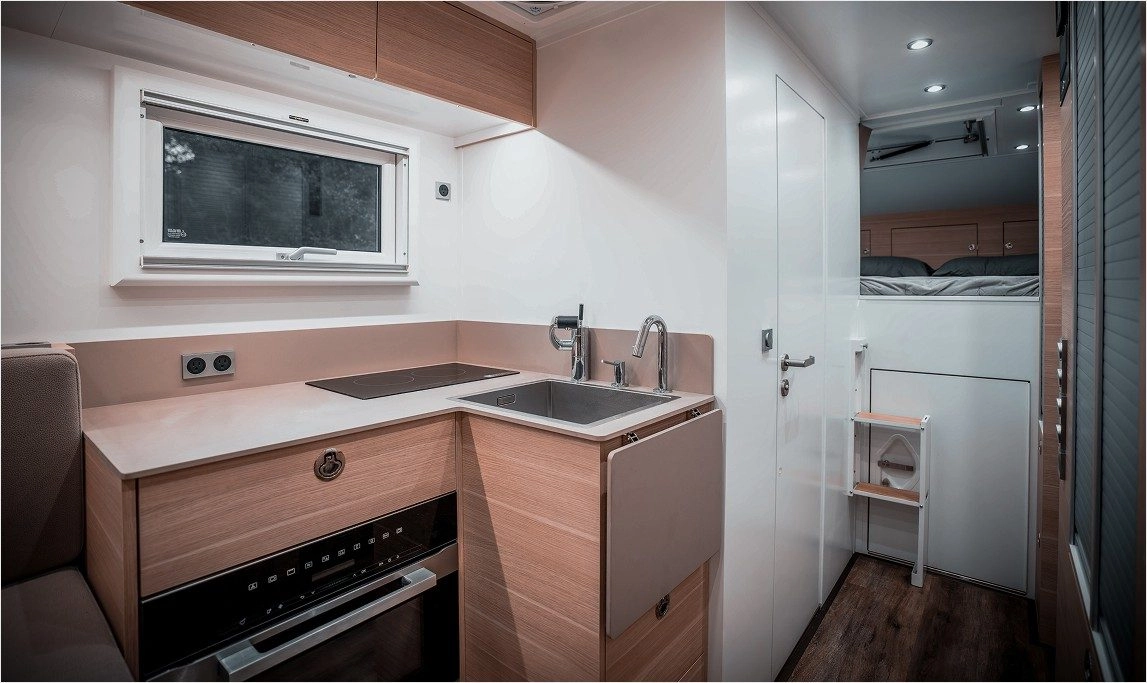

Module Interior

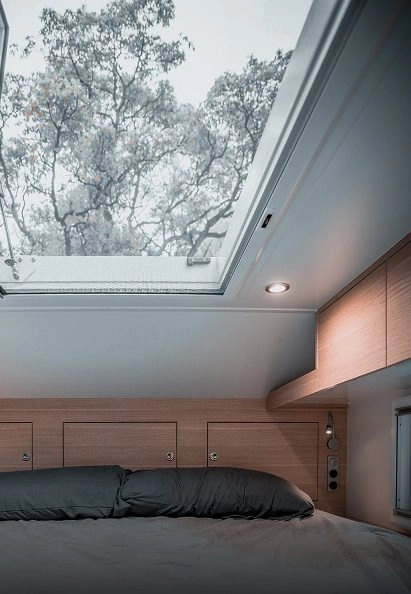

• Panorama roof hatch glazing
  Double glass insert in the roof hatch. Including an internal insect screen and sun protection / black-out blinds.
• Additional window in the rear wall

Comfort and Accessories

• Nespresso coffeemaker
  Installed above kitchen in a stainless tray.

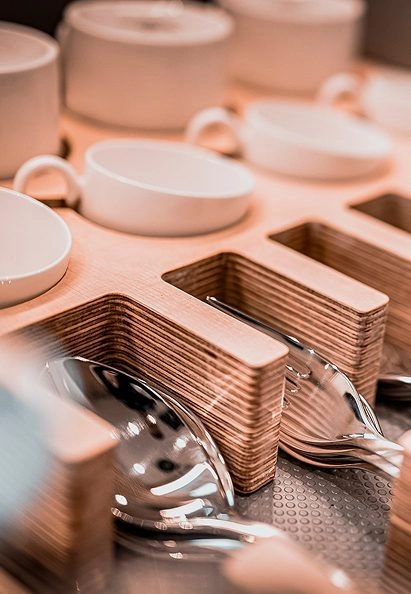

• Complete set of cutlery, tableware and cookware
